1.4 How to switch layers on and off the map

Top  Previous  Next

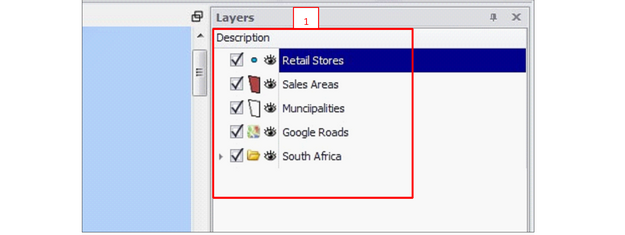

The Layers Description Box (1) allows you to control the layers you have on your map



To switch a layer on so that it displays on the map, tick the box next to the layer name. The ‘eye’ will be open, meaning that the layer is visible on the map

SPATIA~1_img3





To switch a layer off so that it does not display on the map, untick the box next to the layer name . The ‘eye’ will now be closed, meaning that the layer is no longer visible on the map



SPATIA~1_img4







SPATIA~1_img5



The order of the layers in the Layers Description box is important.  The layer at the bottom of the layer description box will draw first and the layer at the top of layers description box will draw last.  E.g. In the example above the Retail Stores (blue points) are on top of Google Roads in the Layers Description box, which means they will overlay/draw on top of the Google Roads layer on the map.  This is important if you have multiple layers ticked on, as layers on top may cover layers below on the map.
