Capturing Geology

Top  Previous  Next

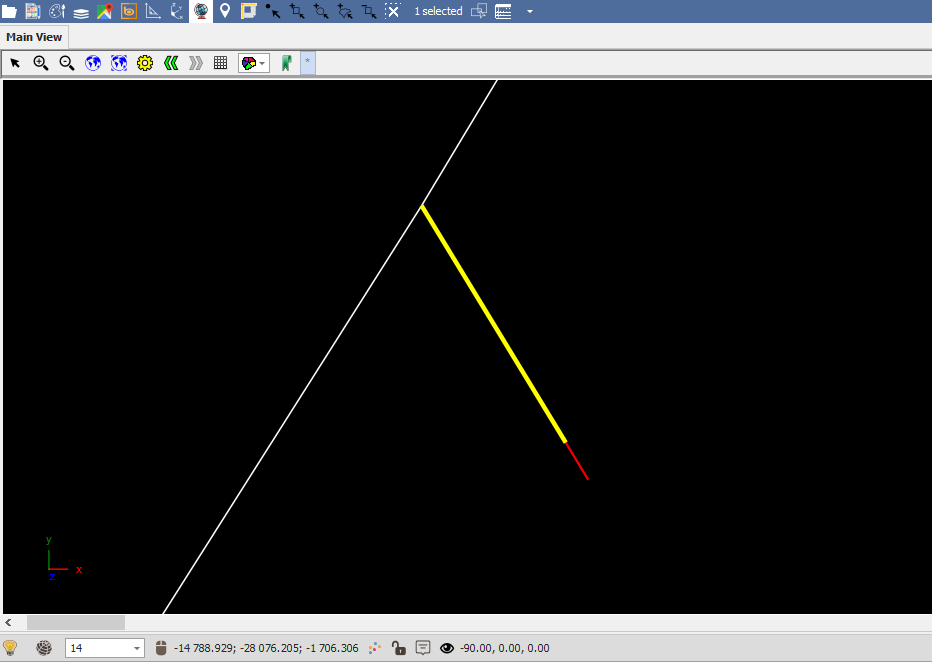

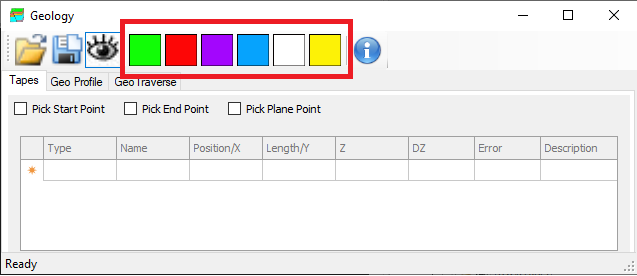

 To capture a geological item, first select one or more features that will make up the item using any of the selection tools above. Then click on the desired Geology class in the Geology window, to add it to that class

clip0075



clip0077

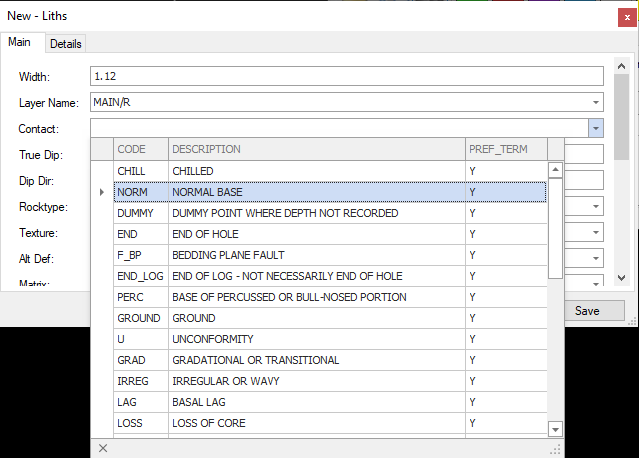

A dialogue will then come up where you will capture the details about that object. These details come from lookup tables that can be configured:

clip0078

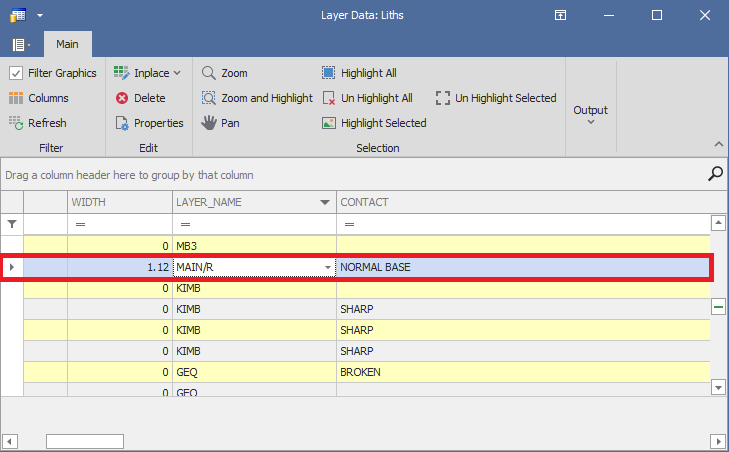

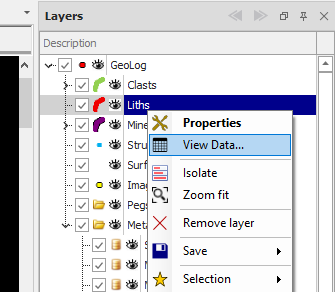

In this example I added this object to the Liths class and if I view the data of the Liths layer I will see that it is now captured there:

clip0079



clip0080
