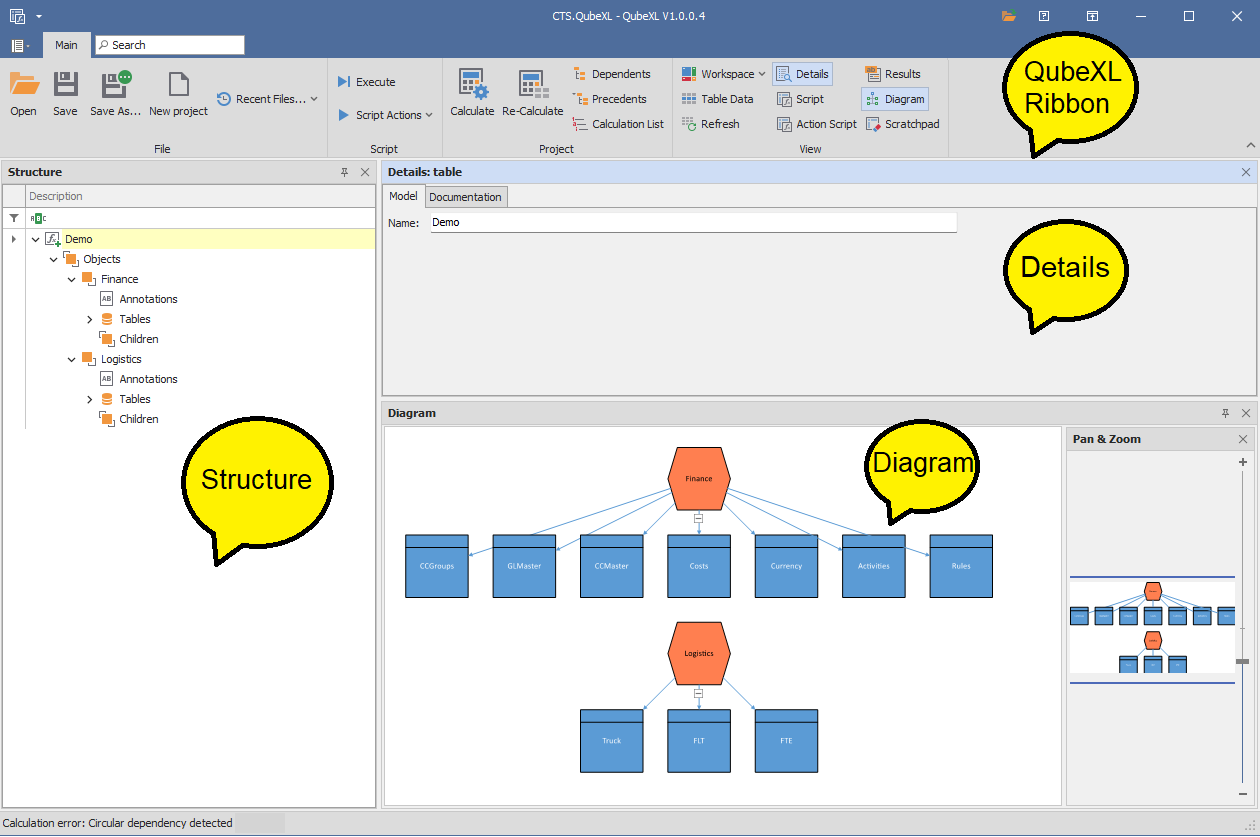

❖After opening QubeXL you are presented with the following Main Screen:
❖Further windows can be shown such as Script, Action Script, Results and Scratchpad; these will be covered later.
Explanation of these main parts follow:
1. QubeXL Ribbon – Ribbon for QubeXL operations.
2. Structure – Tree structure of your Model and its various parts which is explained in the Basics section.
3. Details – Pane where all details relating to each node on the tree structure is displayed.
4. Diagram – Diagrammatic representation of the parts of your model.
