Variance report

Top  Previous  Next

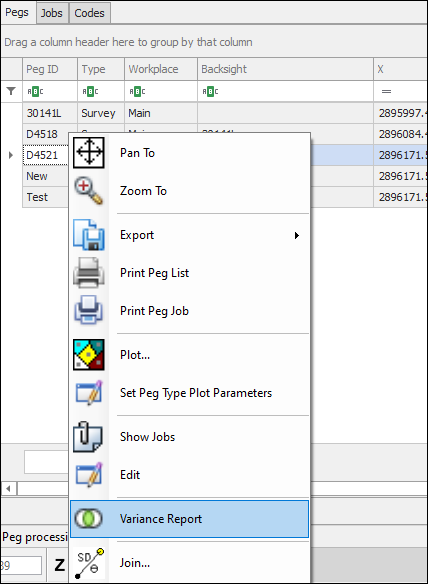

clip0082

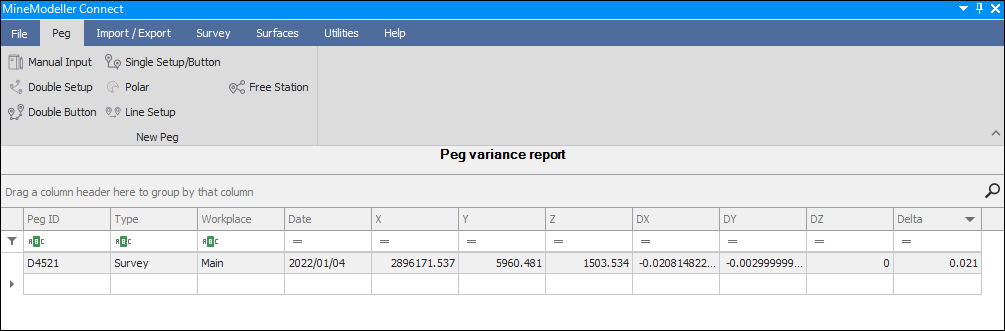

If a peg is within tolerance, the variance report will show that difference (Delta) as small and within tolerance and the text will be in black.



clip0074

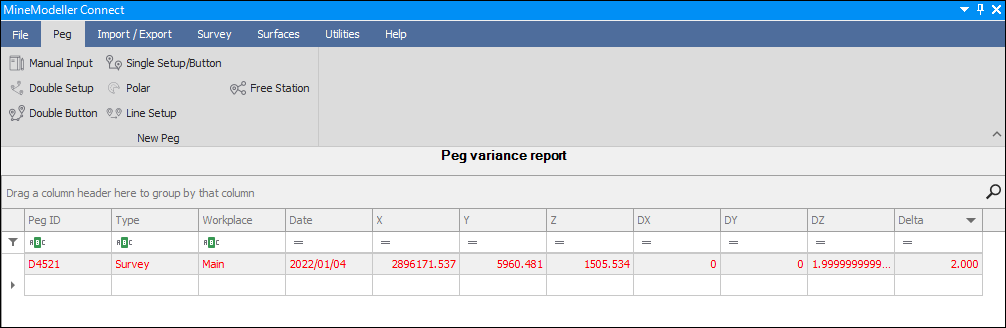

If the variance is outside the tolerance, the text will be in red as the following shows:



clip0075

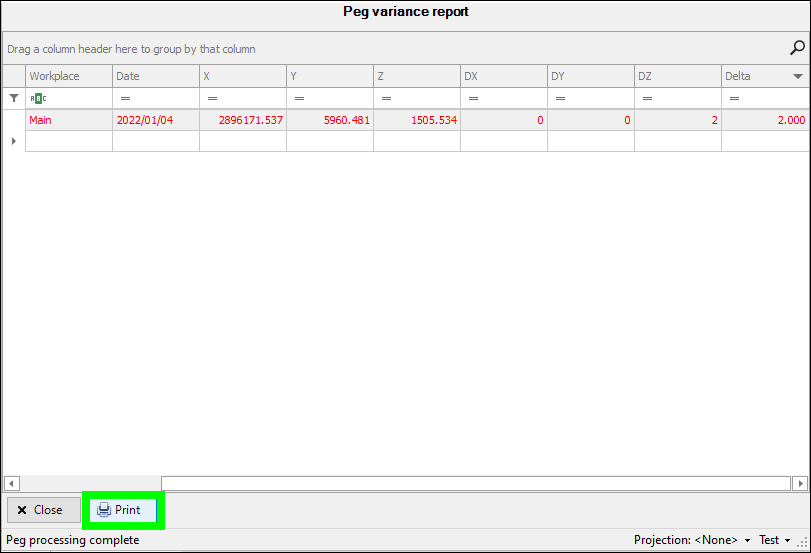

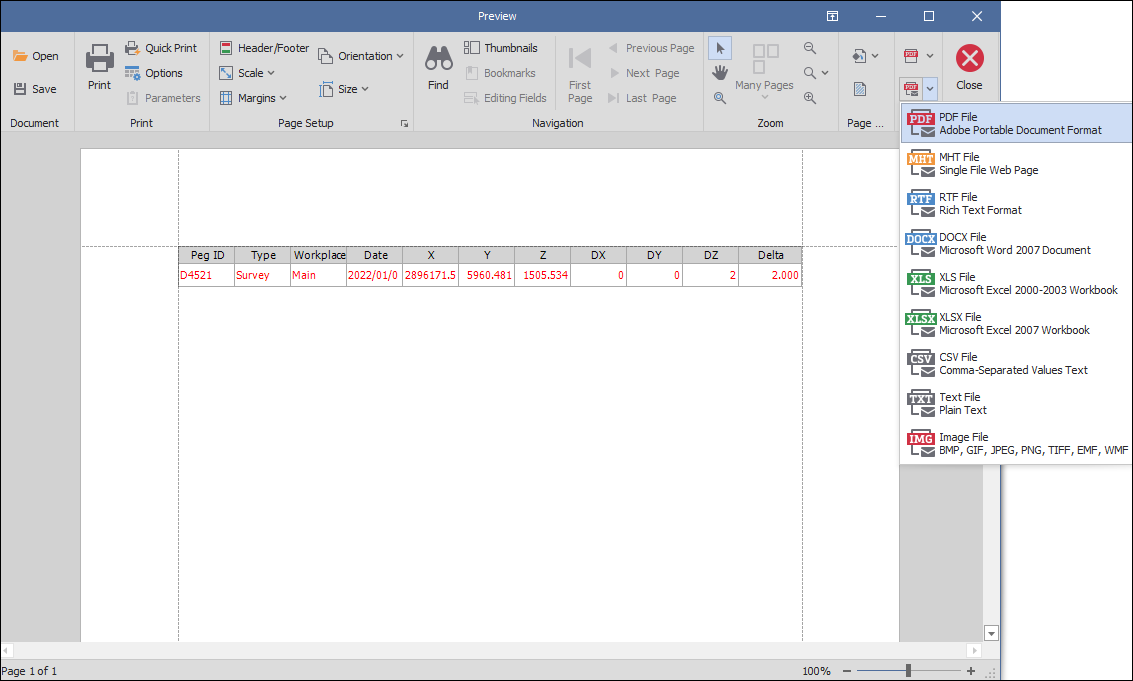

You can then also Print this report by clicking Print, you will get a Print Preview which you can adjust and then print or export as PDF etc.:



clip0080





clip0081
