The Instrument I/F button will load the instrument interface program which gets data directly from Devices or device files such as CSVs.
Load selected will load the selected readings from the instrument interface into the peg capture dialog.
The Readings Button will show the raw readings loaded into the peg calculation if any. If you have calculated the job and save it and check it later, you can also compare by clicking this button to see what the raw readings were.
Reverse base: an indicator specifying whether a reverse base, a normal base or a join is being used. If you click the reverse base button it will reverse the base for you if it is possible and allowed to reverse the base.

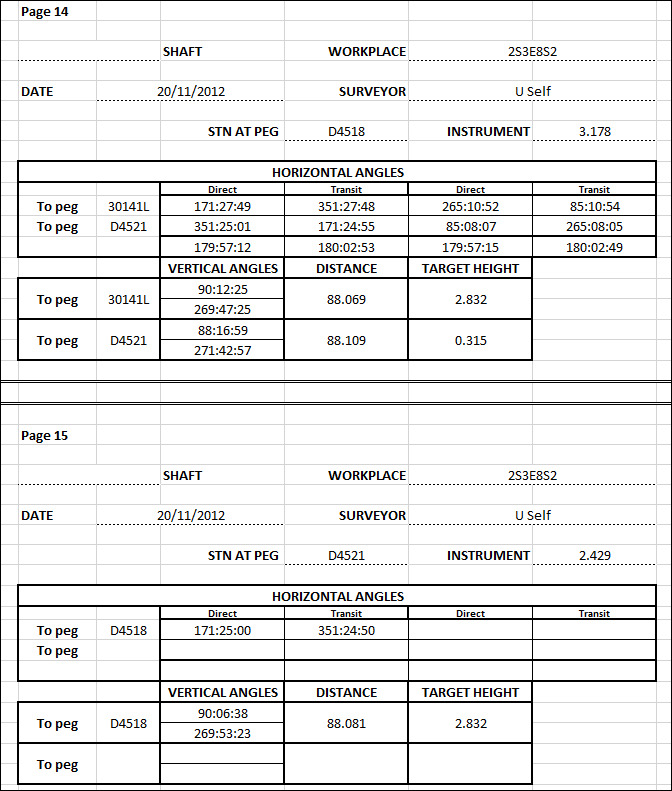

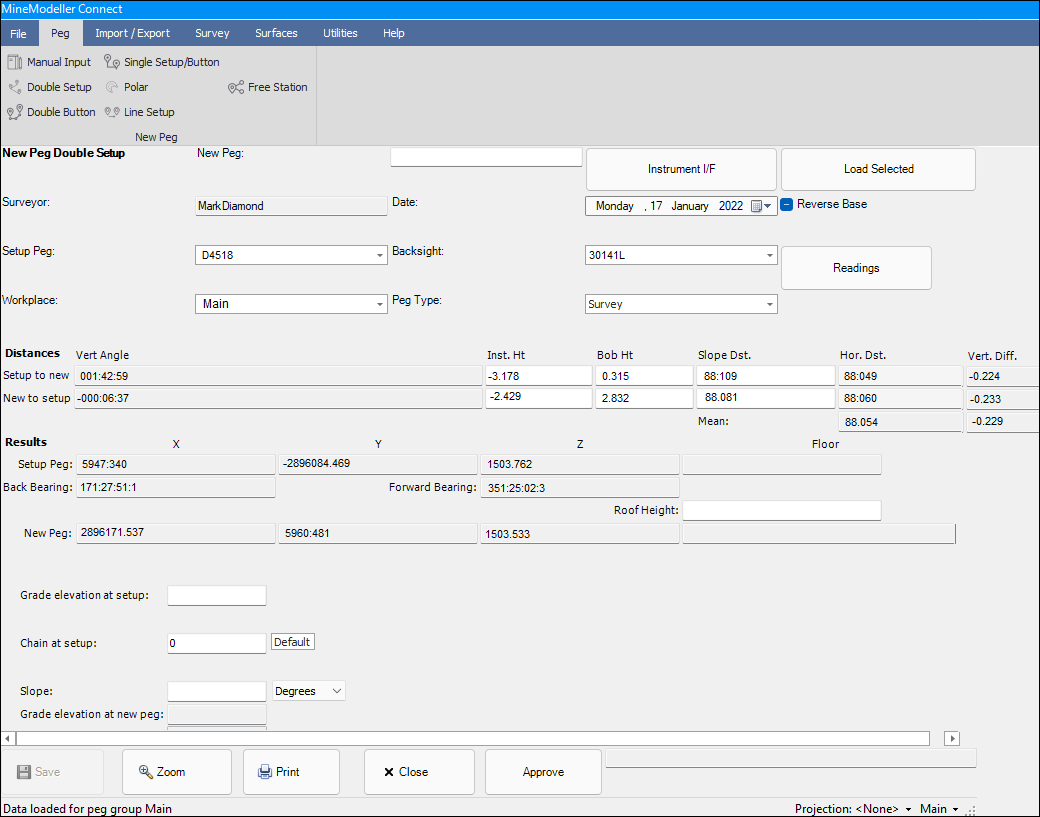

Example of a double set up survey with most of the fields filled in screen by screen.
